Trolleyponder®/EcoTag®

Datasheet - Creditcard sized EcochipTag transponder

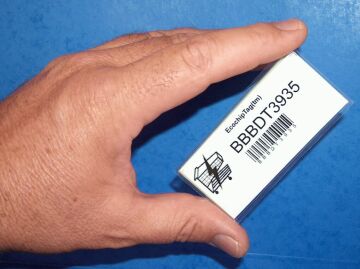

Isocard sized tags

Specifications

Size 80mm by 35mm (antenna)
86mm by 44mm(with packaging)
Operating frequency 868-870MHz(GSM)
900-930MHz(US/Canada)
Operating power 200uW RF power @868-870MHz(GSM)
200uW RF power @900-930Mhz(US)
Antenna aperture 149 sq cms @868-870MHz(GSM)
134 sq cms @900-930Mhz(US)
Antenna gain 2.1dB
Polarisation Linear
Multiple transponder environment Up to 500 in the field
Packaging Laminated sleeve
Air protocol Trolleyponder®(RIST)
Programming Factory pre-programmed
Weight
Part number 8000-0100 @868-870MHz(GSM)
8000-0101 @900-930Mhz(US) 8000-0103 @956Mhz(Japanese)
Manufacturer Trolley Scan (Pty) Ltd
South Africa

Passive tags
Passive tags available - Laundtry tag with packaging,Ecowoodtag and Ecochiptag
BAT tags also available
