Datasheet - Laundry transponder

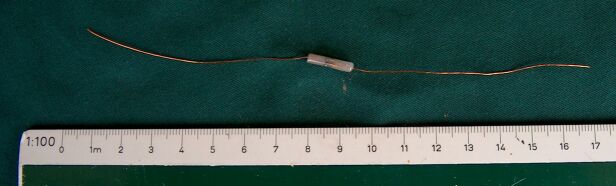

Laundry tags


Size 160mm long wire
Protection around chip in center 1.1mm diameter
Wire antenna diameter 0.2mm diameter
Wire antenna diameter 0.4mm diameter
Operating frequency 868-930MHz
Operating power 1 milliwatt
Antenna aperture 149 sq cms @868-870MHz(GSM)
134 sq cms @900-930Mhz(US)
Antenna gain 2.1dB
Polarisation Linear
Multiple transponder environment Yes
Packaging Enamelled copper wire with single chip protected in epoxy block
Air protocol Trolleyponder®(RIST)
Programming Factory pre-programmed
Part number 8000-0200 for 0.2mm diameter wire
8000-0201 for 0.4mm diameter wire
Manufacturer Trolley Scan (Pty) Ltd
South Africa

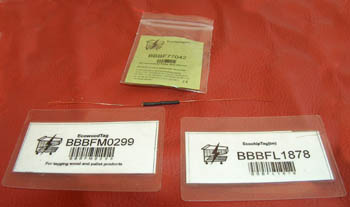

Passive tags
Passive tags available - Laundry tag with packaging,Ecowoodtag and Ecochiptag
BAT tags also available
