Trolleyponder®/EcoTag®

Datasheet - Long Range Stick EcoTag transponder

Stick sized tags

Specifications

Size 160 by 12 mm by 3mm
Operating frequency 868-870MHz(GSM)
900-930MHz(US/Canada)
Operating power 5uW RF power @868-870MHz(GSM)
5uW RF power @900-930Mhz(US)
Antenna aperture 149 sq cms @868-870MHz(GSM)
134 sq cms @900-930Mhz(US)
Transponder power structure Tags are battery assisted from onboard battery with power switch
Antenna gain 2.1dB
Polarisation Linear
Multiple transponder environment Up to 50 in the field
Packaging Laminated sleeve
Air protocol Trolleyponder®(RIST)
Programming Factory pre-programmed
Weight 15 gm
Part number 8000-0700 @868-870MHz
8000-0701 @910-930MHz
Manufacturer Trolley Scan (Pty) Ltd
South Africa

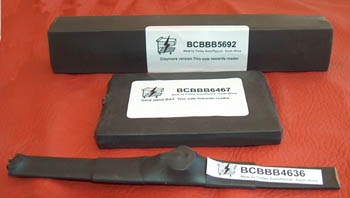

BAT tags
Claymore tag, Stubby BAT and Stick Tag
