Trolleyponder®/EcoTag®

Datasheet - OEM Receiver Module

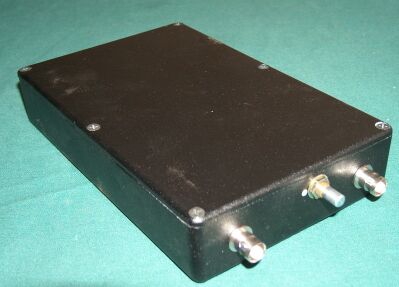

OEM Receiver module

Specifications

This receiver module, with a power amplifier, antennas and power supply - form the complete backscatter receiver for EcochipTag transponders.

The receiver module contains the frequency synthesizer, modulator and pre-amplifier for the energising section of the reader; and the magnetic mixers, I & Q preamps, DSP processor and RS232 drivers for the receiver. The module is programmed to implement the Trolleyponder(RIST) protocol for multiple transponders.

The receiver input stage uses a magnetic mixer so as not to overload in the presence of the energising field while being able to detect the very weak transponder data signal at the same operating frequency.

The Enhanced sensitivity handles extremely low power versions of EcochipTag transponders - that is transponders that operate on less than 200uW.

Size 200mm by 118mm by35mm
Operating frequency 860 - 956MHz software selectable
Operating power 12 volts 200 ma
RF Power output 0.3dBm to 4dBm user adjustable
Receiver sensitivity -64dBm (200 picoWatt)
Receiver dynamic range 54 dB
RF Connectors BNC socket
Air protocol Trolleyponder®(RIST)
Data output RS232 9600 baud
Signal connector DB 15 pin connector
+12 volts input (200ma)
Ground
RS232 input
Single/Continuous control
Enable/Neutral control
OK LED output
ERROR LED output
Pre-amp I+ output
Pre-amp Q+ Output
Multiple transponder environment Yes
Part number 2000-0001 Normal
Manufacturer Trolley Scan (Pty) Ltd
South Africa
