Trolleyponder®/EcoTag®

Datasheet - EcowoodTag transponder

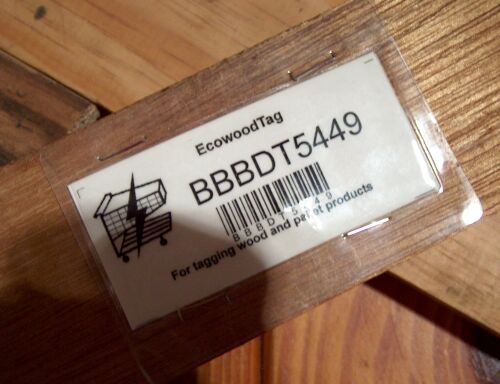

Tags designed for wooden products

Specifications

Operating scenario Tag works by being attached directly to wooden objects such as pallets
Size 80mm by 35mm (antenna)
86mm by 44mm(with packaging)
Operating frequency 868-870MHz(GSM)
900-930MHz(US/Canada)
Operating power 400uW RF power @868-870MHz(GSM)
400uW RF power @900-930Mhz(US)
Antenna aperture 149 sq cms @868-870MHz(GSM)
134 sq cms @900-930Mhz(US)
Antenna gain 2.1dB
Polarisation Linear
Multiple transponder environment Yes
Packaging Laminated sleeve
Air protocol Trolleyponder®(RIST)
Programming Factory pre-programmed
Weight
Part number 8000-0401 @868-870MHz(GSM)
8000-0400 @900-930Mhz(US)
Manufacturer Trolley Scan (Pty) Ltd
South Africa

Passive tags
Passive tags available - Laundtry tag with packaging,Ecowoodtag and Ecochiptag
BAT tags also available
